Free nucleobase experiments in solution

Introduction

Chemical Cleavage of Mismatches (CCM) is a technique that employs the ability of potassium permanganate (KMnO₄) and hydroxylamine (NH₂OH) to preferentially react with thymine (T) and cytosine (C) bases, respectively, and open the pyrimidine ring according to the mechanism shown in Figure 1.

Figure 1. Reactions of KMnO₄ and NH₂OH with pyrimidine bases.

In order to optimize the reaction conditions for cleaving the mismatches in DNA molecules immobilized on surface, first, a series of experiments were conducted on four different nucleoside monophosphates in solution. The goal of these experiments was to study the specificity and kinetics of the reactions of KMnO₄ and NH₂OH with all four nucleobases.

Conjugated aromatic rings in DNA bases absorb light with the maxima in the range between 260 and 280 nm. KMnO₄ and NH₂OH are expected to break selectively the aromaticity of thymine (T) and cytosine (C) nucleobases, respectively. Hence, one should observe a gradual decrease in absorbance as the corresponding reactions progress. The kinetics of the reactions can be elucidated through monitoring the changes in the absorbance of free nucleoside monophosphates as a function of time.

Methods

Hydroxylamine (NH₂OH), potassium permanganate (KMnO₄), dimethylamine ((CH₃)₂NH), sodium acetate (CH₃COONa), thymidine 5-monophosphate disodium salt hydrate, 2-deoxyguanosine 5-monophosphate sodium salt hydrate, 2-deoxycytidine 5-monophosphate sodium salt, and 2-deoxyadenosine 5-monophosphate were purchased from Sigma-Aldrich and used without further purification. The concentrations of potassium permanganate and hydroxylamine in the reaction mixtures were 0.4 mM and 3.2 M, respectively. For the reactions, nucleoside monophosphates were dissolved in deionized water. Their concentrations were determined from the absorption data using the Lambert-Beer law. Hydroxylamine stock solution was prepared at 4.2 M concentration and pH was adjusted to 6 using dimethylamine. The final concentration of hydroxylamine in the reaction mixtures was 3.23 M. The absorption spectra were recorded on a Cary 50 Bio UV-Vis spectrophotometer (Varian).

Results and Discussion

The reactivity of hydroxylamine (NH₂OH) and potassium permanganate (KMnO₄) towards four different nucleoside monophosphates containing thymine, cytosine, adenine, and guanine bases was investigated using UV-Vis spectroscopy. NH₂OH and KMnO₄ were allowed to react with nucleoside monophosphates for different amounts of time. In the case of KMnO₄ the reaction was stopped using 1 M sodium acetate solution (pH 5.2). The absorption spectra of thymidine 5-monophosphate before and after reacting with KMnO₄ are presented in Figure 2.

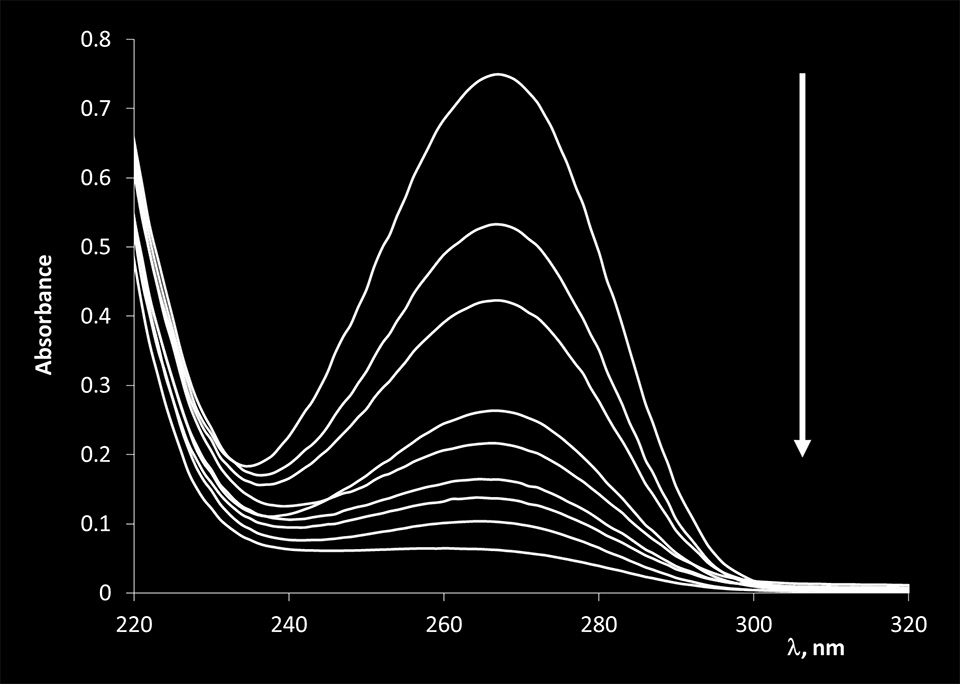

Figure 2. Absorption spectra of thymidine 5-monophosphate before and after reacting with KMnO₄. The arrow indicates the direction of the observed changes after the reaction was allowed to proceed for 1, 5, 11.5, 15, 18, 21.5, 25, 35 minutes.

A gradual decrease in the absorption of thymine bases is observed as the reaction of KMnO4 is allowed to proceed for longer periods of time. This observation is consistent with KMnO4 opening the thymidine ring of the base and destroying its aromaticity.

We found little to no effect of KMnO4 on the absorbance of other nucleoside monophosphates. Some reactivity was observed for cytosine. The summary of the results is presented in Figure 3.

Figure 3. The percent concentration of the bases that did not react with KMnO₄ as a function of time. The concentration was calculated relative to the initial nucleobase concentrations in solution.

NH₂OH showed very high specificity towards cytosine (Figure 5). However, the reaction is much slower compared to the reaction of KMnO₄ with thymine bases.

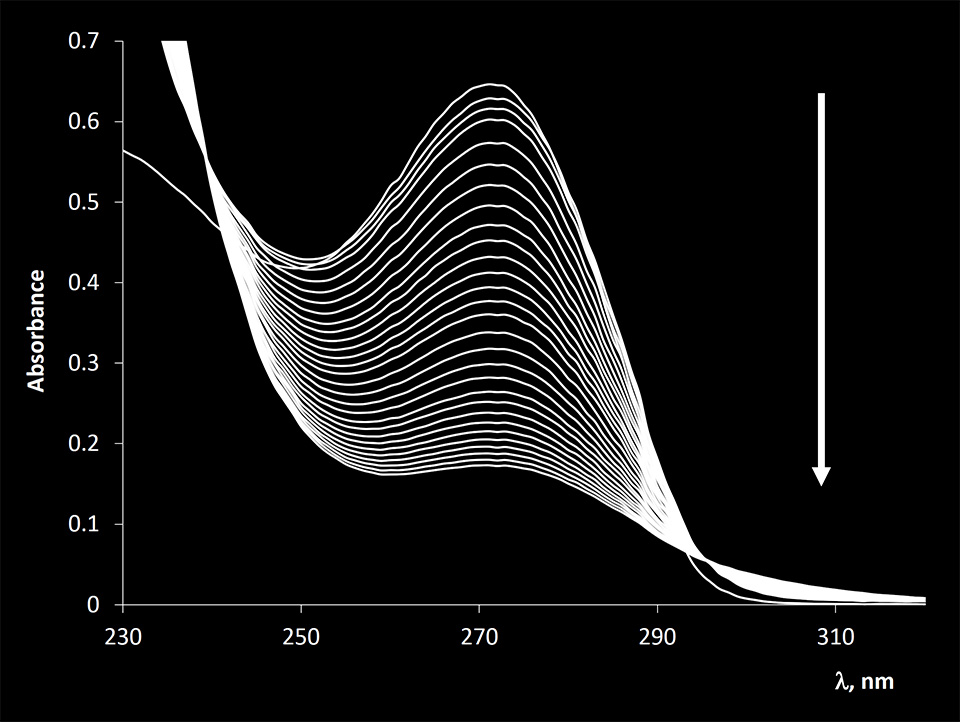

Figure 4. Absorption spectra of 2-deoxycytidine 5-monophosphate before and after reacting with NH₂OH. The arrow indicates the direction of the observed changes after the reaction was allowed to proceed for 1, 5, 10, 20, 30, 40, 50, 60, 70, 80 ,90, 100, 110, 120, 135, 150, 165, 180, 195, 210, 225, 240, 255, 270, 285, 300, 315, 330 minutes.

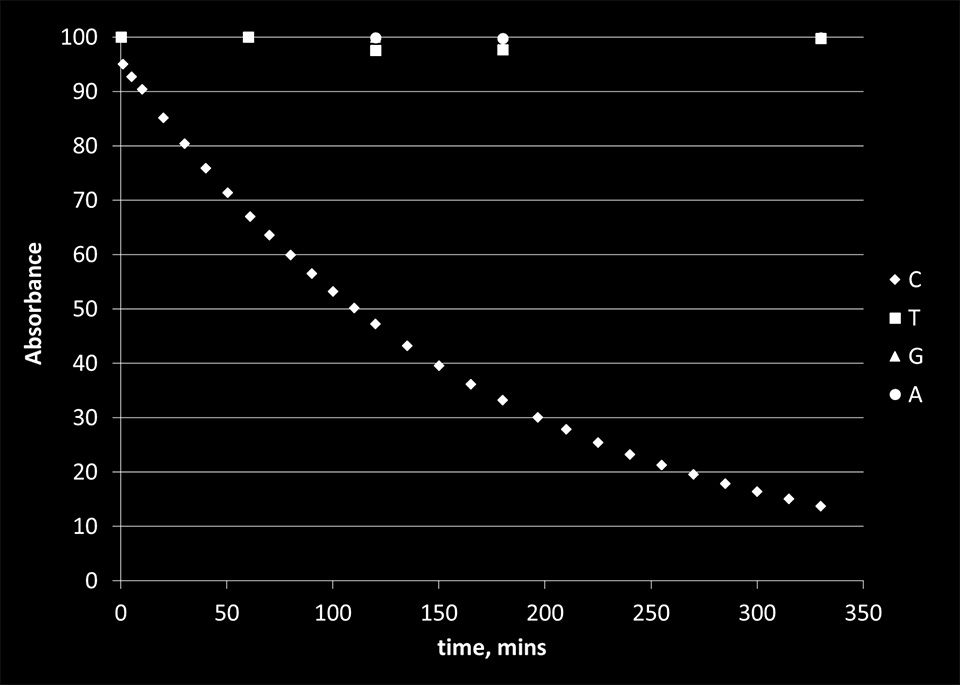

Figure 5. The percent concentration of the bases that did not react with NH₂OH as a function of time. The concentration was calculated relative to the initial nucleobase concentrations in solution.

For the second order reaction

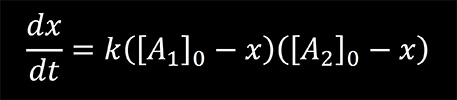

the rate equation is given by

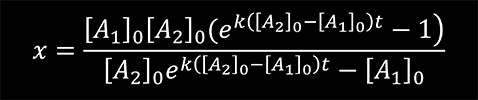

where k is the rate constant of the reaction, [A₁]₀ and [A₂]₀ are the initial concentrations of the reactants, and x is a variable defined as

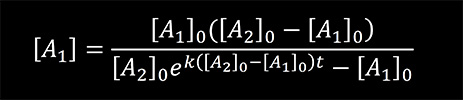

At time t = 0, [B]₀ = 0. Using these initial conditions and integrating the rate equation one can obtain

We used the previous equation to fit the experimental data obtained for the reaction of KMnO₄ with thymine and the reaction of NH₂OH with cytosine. [A₁] in the equation represents the concentrations of the bases calculated from the absorption data using the Lambert-Beer law. The results are presented in Figure 5 and 6. From the fit, the reaction rate constants were determined to be 24.6 M^-1sec^-1 for the reaction of KMnO₄ with thymine and 0.3 M^-1sec^-1 for the reaction of NH₂OH with cytosine.

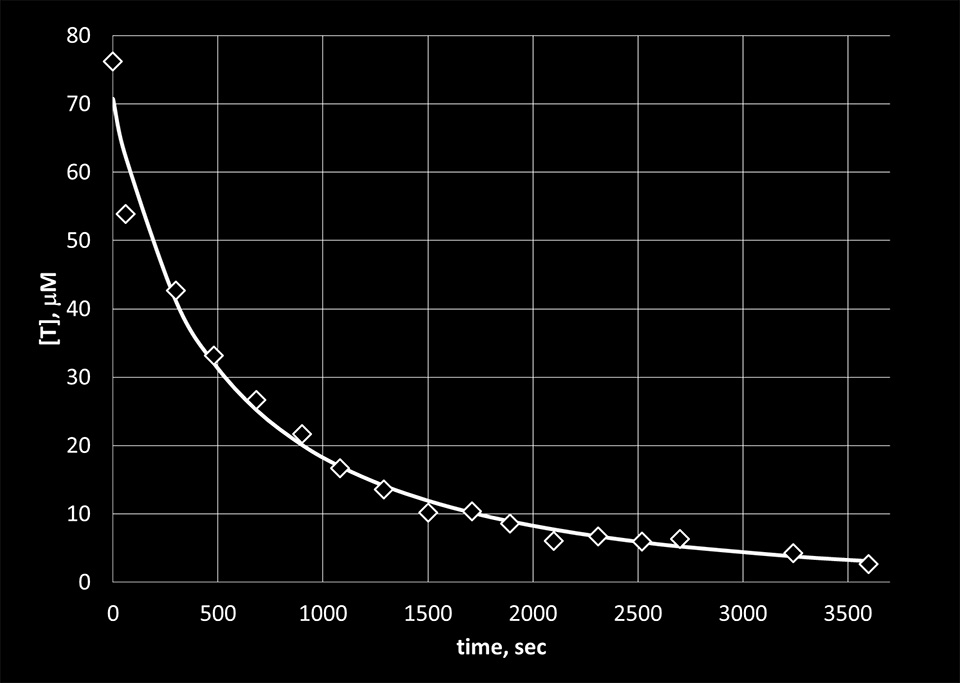

Figure 6. The experimental concentration values of T bases obtained from the absorption data using the Lambert-Beer law (diamonds) with fit (solid line).

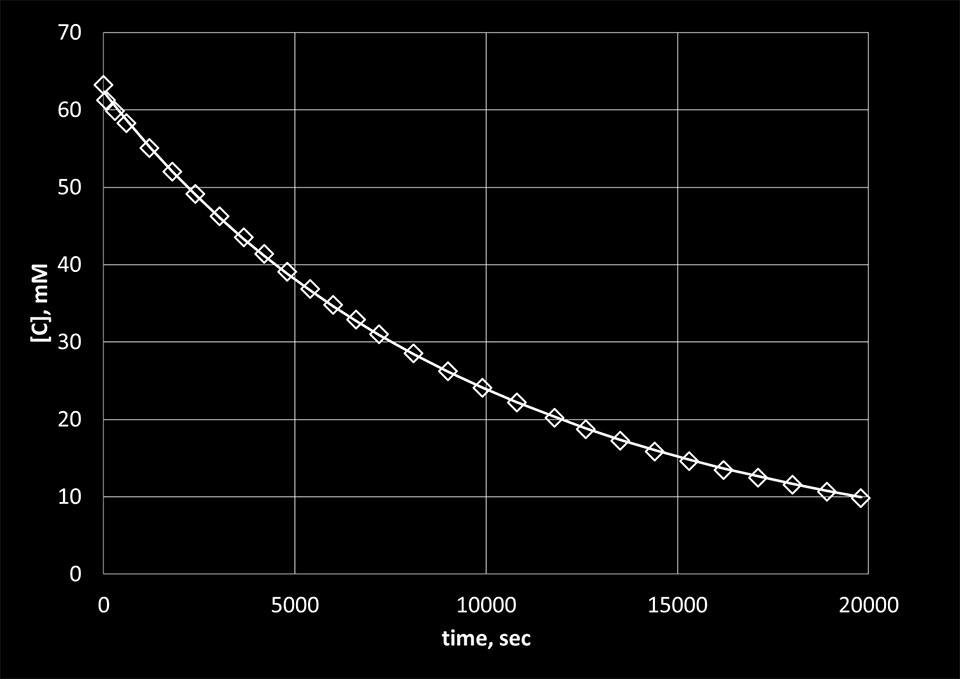

Figure 7. The experimental concentration values of C bases obtained from the absorption data using the Lambert-Beer law (diamonds) with fit (solid line).

The obtained results were used to design experiments in more complex systems where each reagent was used to cleave dsDNA by reacting with appropriate bases in strands containing single C-C or T-T mutations. Those experiments are described in next sections.
